Hisense Mini 4-Way Cassette AC 12000 BTU Wall Mounted Inverter

Name: Hisense Mini 4-Way Cassette AC 12000 BTU Wall Mounted Inverter
Brand: Shiny-Control Technology Develop (Beijing) Co., Ltd.
SKU: Mini 4-Way Cassette
Availability: InStock

Brand Name:	Hisense
Model Number:	Mini 4-Way Cassette
MOQ:	negotiable
Price:	negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Oud Unit:

14000btu~42000btu

Energy Efficiency Ratio:

14.5

Noise Level:

45 DB

Installation Type:

Wall Mounted

Model:

Multi Split Inverter

Filter Type:

Washable

Refrigerant Type:

R410A

Fan Motors Type:

Multi Head Qty:

Max 5 Indoor Unit

Indoor Unit Dimensions:

800mm X 300mm X 200mm

Power Supply:

220-240V/50Hz

Energy Efficiency Rating:

Up To 21 SEER

Cooling Capacity:

12,000 BTU

Variable Frequency:

Variable Frequency

Indoor Unit:

Wall ,duct,cassette,floor Ceiling

Packaging Details:

Wooden box packaging

Highlight:

Hisense 4-way cassette AC

12000 BTU wall mounted AC

Hisense inverter air conditioner

Product Description

4-Way Airflow Technology: The Key to Balanced Comfort with Hisense Central Air Conditioner

Product Specifications

Attribute	Value
Outdoor Unit	14000btu~42000btu
Energy Efficiency Ratio	14.5
Noise Level	45 dB
Installation Type	Wall Mounted
Model	Multi Split Inverter
Filter Type	Washable
Refrigerant Type	R410A
Fan Motors Type	DC
Multi Head Qty	Max 5 Indoor Unit
Indoor Unit Dimensions	800mm x 300mm x 200mm
Power Supply	220-240V/50Hz
Energy Efficiency Rating	Up to 21 SEER
Cooling Capacity	12,000 BTU
Variable Frequency	Variable Frequency
Indoor Unit	Wall, duct, cassette, floor Ceiling

Product Overview

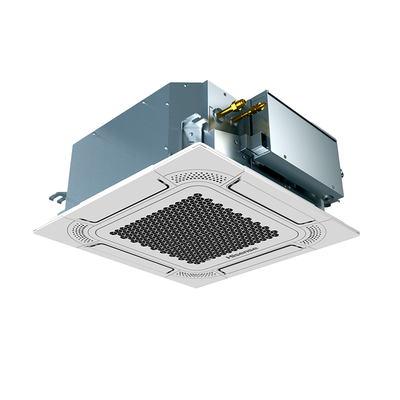

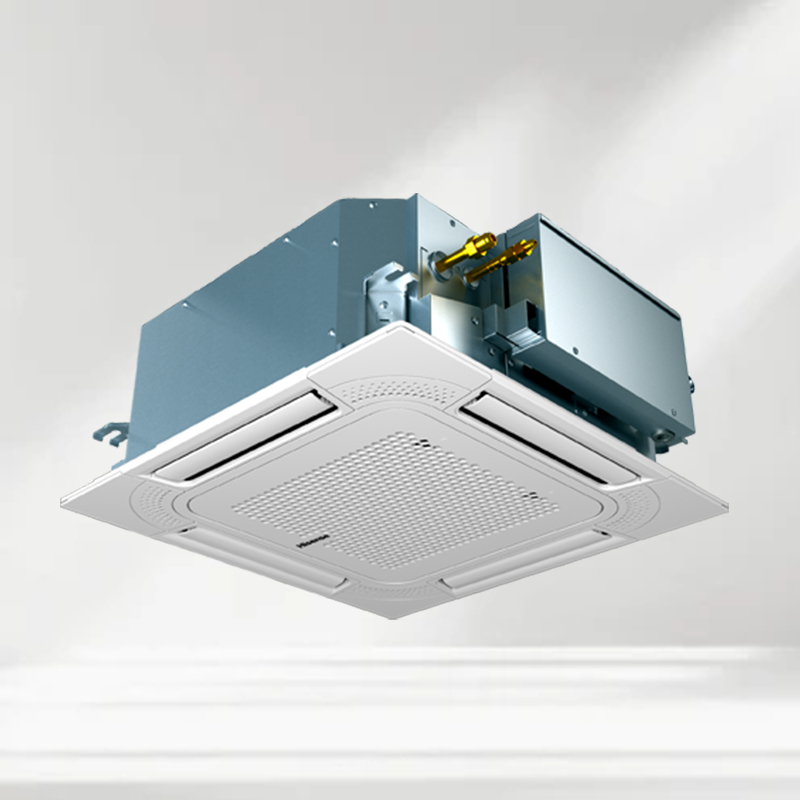

The Hisense Mini 4-Way Cassette is a space-saving air conditioning solution designed to deliver uniform cooling and heating in compact to mid-sized areas, making it ideal for small offices, retail kiosks, hotel rooms, and cozy commercial spaces. Engineered with a compact footprint, this ceiling-mounted cassette unit combines 4-way airflow technology with efficient performance, ensuring consistent temperatures across every corner without occupying valuable floor space.

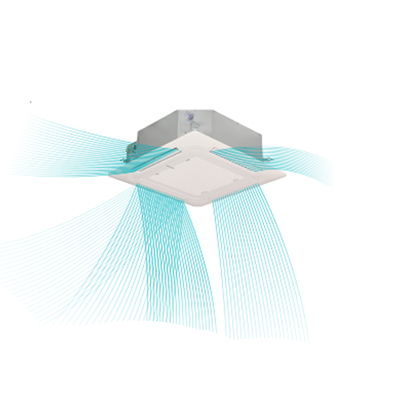

At the core of its design is the 4-way airflow system, which distributes air evenly in four directions—eliminating hot or cold spots and creating balanced comfort. Despite its mini size, it packs powerful cooling and heating capabilities, adapting seamlessly to seasonal temperature changes and maintaining optimal conditions year-round.

Energy efficiency is a key highlight, thanks to Hisense's advanced inverter technology. The Mini 4-Way Cassette adjusts compressor speed dynamically to match the space's needs, reducing energy consumption and lowering operational costs while delivering reliable performance. Its low-profile ceiling integration ensures it blends discreetly with interiors, preserving the aesthetic of your space without bulky installations.

Key Features

Higher Installation

The cassette unit is capable of blowing air from ceiling heights of up to 4.2m, ensuring effective air distribution even in rooms with high ceilings.

Breeze Mode

Under the new designed breeze mode, the cold air is blown out from the microholes in the panel, and the unit works in a mute mode, which can avoid blowing air directly on people and achieve more even and comfortable airflow.

Individual Louvers Control

Mini 4-Way cassette louvers are now capable of individual control to freely choose how you want your AC unit supplies air according to different needs, applications and installation layouts. Each louver has 7 adjustable angle settings with a maximum angle of up to 64°.

Auto Cleaning

With just a press on the controller, the unit cleans itself automatically without manual intervention. It not only ensures clean and healthy air supply but also saves your valuable time and cost.

Motion Sensor

The sensor detects human presence to automatically switch the cassette unit on or off and adjust the airflow direction towards people or away from them. When the area becomes crowded, the system automatically lowers the set temperature to maintain comfort, and vice versa.

Technical Specifications

Power supply form	AC 1Φ, 220V~240V/50Hz/60Hz
Output capability (refrigeration)	3.6kW
Output capability (heating)	4.2kW
Noise	34/32/29/26dB(A)
Air volume	7.8/7.2/6.5/5.8m3/min
Weight (net)	14.8kg
Size (net)	215570570
Model	HPE-DNK1
