Wall Mounted Ventilation System
Created with Pixso.

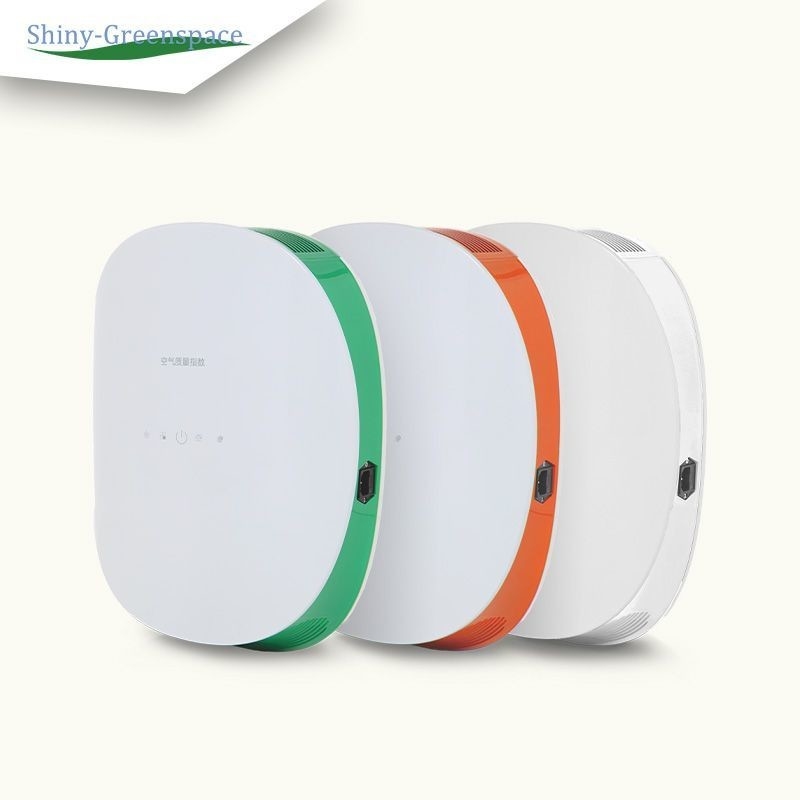

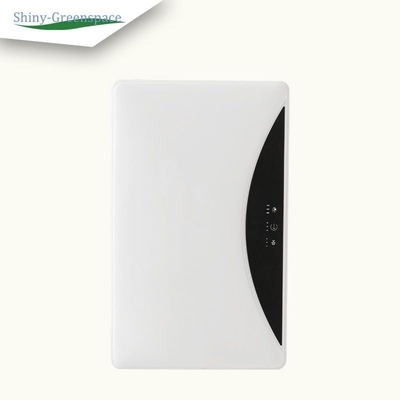

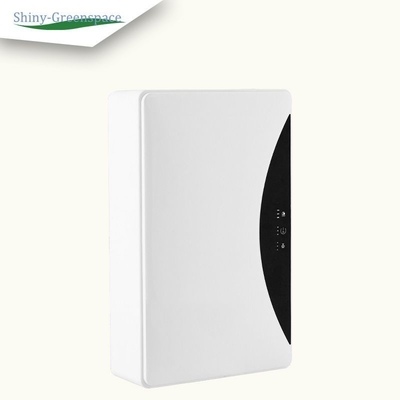

Wall Mounted Ventilation Unit 150m3/H H13 HEPA Air Exchange System

Wall Mounted Ventilation Unit 150m3/H H13 HEPA Air Exchange System

MOQ: 200
Price: Negotiable
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Detail Information
Certification:
CE, CCC
Model NO.:
H506
Application:
Heater, Cooler, Purifier
Principle:
Mixing Heat Exchanger
Material:
Plastic + Steel
Weight:
10kg
Noisy Level:
Maximum 53dB
Language:
English/Chinese
Purification Class:
Class H13
Transport Package:
Wood+Carton
Specification:
660*455*148mm
Trademark:
Shiny-greenspace
Origin:
China
HS Code:
8419500090
Supply Ability:
200000 Pieces/Year
Packaging Details:
Depends on equipment sizes
Highlight:

Wall Heat Exchanger Ventilation Unit

,

150m3/H Air Exchange Ventilation System

,

Heat Exchanger Ventilation Unit 150m3/H

Product Description
[Minimum order in large quantities] Wall Heat Exchanger Ventilation Unit 150m³/H Air Exchange Ventilation System
Product Specifications
Model NO. H506
Application Heater, Cooler, Purifier
Principle Mixing Heat Exchanger
Material Plastic + Steel
Weight 10kg
Noisy Level Maximum 53dB
Language English/Chinese
Purification Class Class H13
Transport Package Wood+Carton
Specification 660*455*148mm
Trademark Shiny-greenspace
Origin China
HS Code 8419500090
Supply Ability 200000 Pieces/Year
System Performance
Fresh airflow volume 150m³/h
Exhaust volume 130m³/h
Purification class Class H13
Purification efficiency >99.9%
Noise value <53dB(A)
Heat exchange rate Compatible with GB21087 standards
Control mode Intelligent operation/touch control/remote control
Applicable space 60m (calculated at 2 air changes per hour)
Wall Mounted Ventilation Unit 150m3/H H13 HEPA Air Exchange System 0 Wall Mounted Ventilation Unit 150m3/H H13 HEPA Air Exchange System 1 Wall Mounted Ventilation Unit 150m3/H H13 HEPA Air Exchange System 2
Key Features
Premium Quality DC Brushless Motor
Our independently developed DC brushless motor features a wide speed range and seamless speed regulation. It offers superior overload capability, reduced energy consumption, and remarkably low noise levels. With large power redundancy and sophisticated servo drive circuit, it operates within the optimal speed regulation curve for maximum efficiency.
HEPA High-Efficiency Purification
The advanced H13 HEPA filter provides triple-filter air purification, effectively capturing PM2.5, eradicating bacteria, and purifying 20.3μm particulate matter with >99.9% efficiency. Cold catalyst technology ensures up to 90% formaldehyde adsorption efficiency for a healthy indoor environment.
Wall Mounted Ventilation Unit 150m3/H H13 HEPA Air Exchange System 3
