products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Wall Mounted Ventilation System
Created with Pixso.

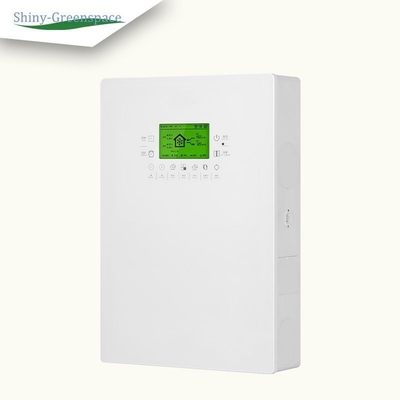

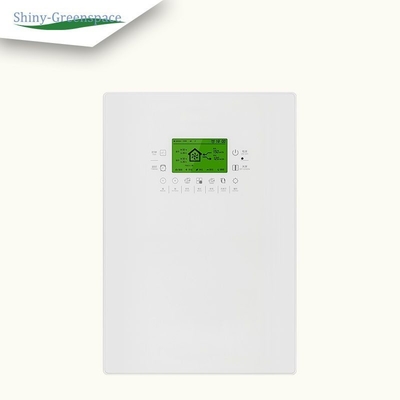

H501 Class H13 Wall Mounted Ventilation System with Fresh Air Supply

H501 Class H13 Wall Mounted Ventilation System with Fresh Air Supply

MOQ: 200
Price: Negotiable
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Detail Information
Model NO.:
H501
Layout:
Coaxial
Openness:
Closed
Installation:
Vertical
Transmission Form:
Gear
Type:
Flange
Weight:
10kg
Noisy:
53dB
Language:
English-Chaese
Purification Class:
Class H13
Transport Package:
Wood
Specification:
660*455*148mm
Trademark:
Shiny-greenspace
Origin:
China
HS Code:
8419500090
Supply Ability:
200000
Packaging Details:
Depends on equipment sizes
Highlight:

h13 positive pressure air purifier

,

positive pressure air purifier intelligent

,

intelligent wall mounted ventilation system

Product Description
[Minimum order in large quantities] Class H13 Positive Pressure Air Purifier Intelligent Wall Mounted Ventilation System
Product Specifications
Attribute Value
Model NO. H501
Layout Coaxial
Openness Closed
Installation Vertical
Transmission Form Gear
Type Flange
Weight 10kg
Noise Level 53dB
Language English-Chinese
Purification Class Class H13
Transport Package Wood
Specification 660*455*148mm
Trademark shiny-greenspace
Origin China
HS Code 8419500090
Supply Ability 200,000 units
Product Description
660*455*148mm Positive Pressure Air Purifier with Fresh Air Supply H501 Intelligent Energy-Saving Purification Class H13
Feature Specification
Fresh airflow volume 150m³/h
Exhaust volume 130m³/h
Purification class Class H13
Purification efficiency >99.9%
Noise value <53dB(A)
Heat exchange rate Compatible with GB21087 standards
Control mode Intelligent operation/touch control/remote control
Applicable space 60m³ (calculated at 2 air changes per hour)
H501 Class H13 Wall Mounted Ventilation System with Fresh Air Supply 0 H501 Class H13 Wall Mounted Ventilation System with Fresh Air Supply 1 H501 Class H13 Wall Mounted Ventilation System with Fresh Air Supply 2
Key Features:
  • Independently developed DC brushless motor with wide speed range, smooth speed regulation, overload capability, low energy consumption, and low noise operation
  • Maintains large power redundancy during operation with servo drive circuit for optimal speed regulation
  • H13 HEPA high efficiency purification with triple filtration system effectively intercepts PM2.5, bacteria, and 20.3μm particulate matter (>99.9% efficiency)
  • Cold catalyst adsorption achieves up to 90% formaldehyde removal efficiency
  • Two-way cold and heat exchange technology minimizes temperature difference between incoming and outgoing air
H501 Class H13 Wall Mounted Ventilation System with Fresh Air Supply 3
Advanced Technology:
  • Patented air cavity structure combines three effects in one unit for energy efficiency (less than 1kWh for 24 hours in silent mode)
  • Custom-designed fan with special noise reduction technology achieves optimal balance of air volume, noise, and energy consumption
  • 45-degree angle air design based on fluid mechanics creates 360° circulation without dead angles for faster, more thorough air purification
  • Continuously supplies oxygen-rich outdoor air while filtering indoor air, reducing carbon dioxide levels for healthier breathing environment
